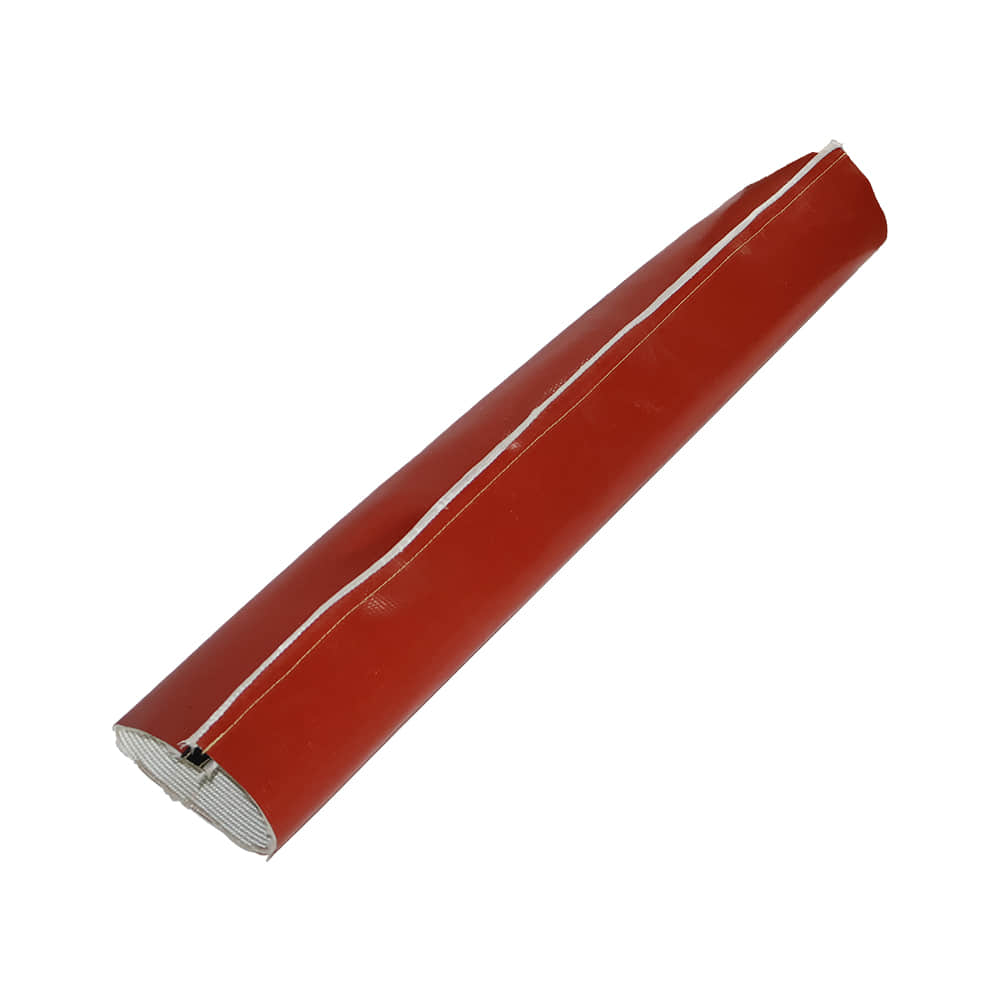

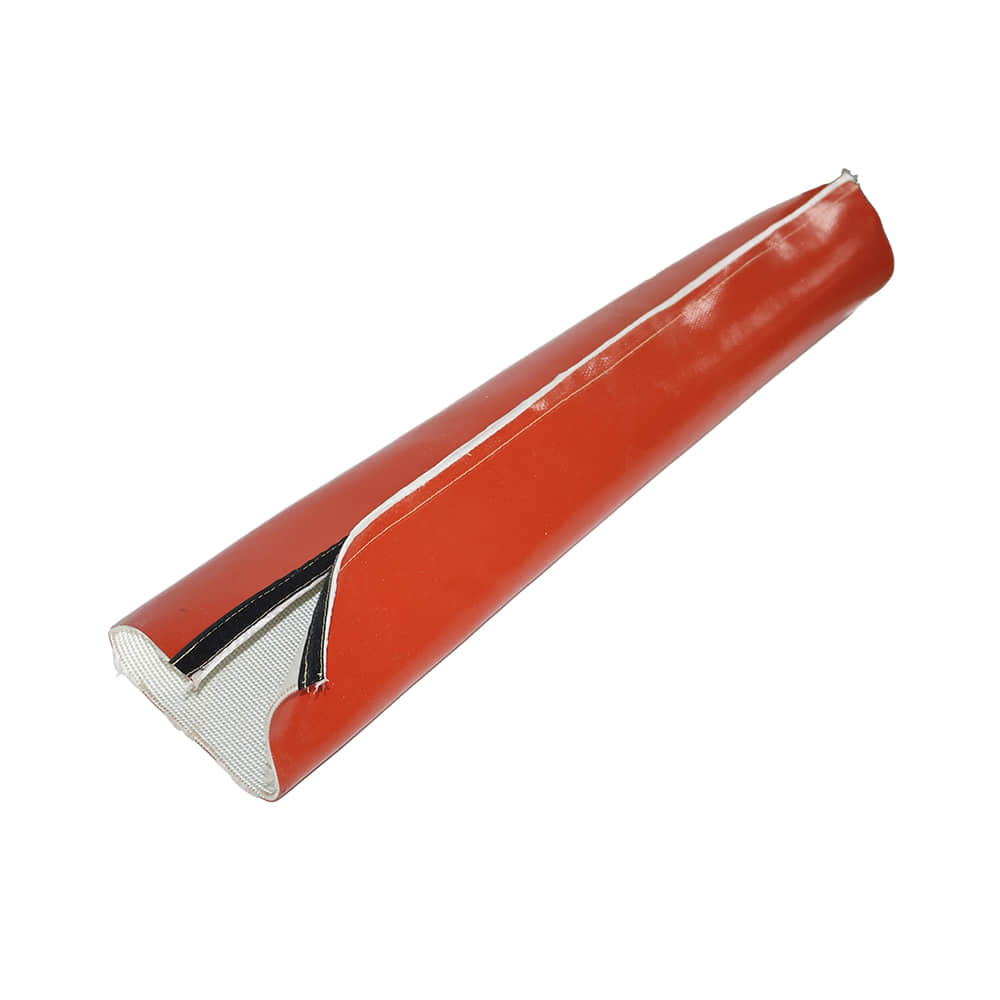

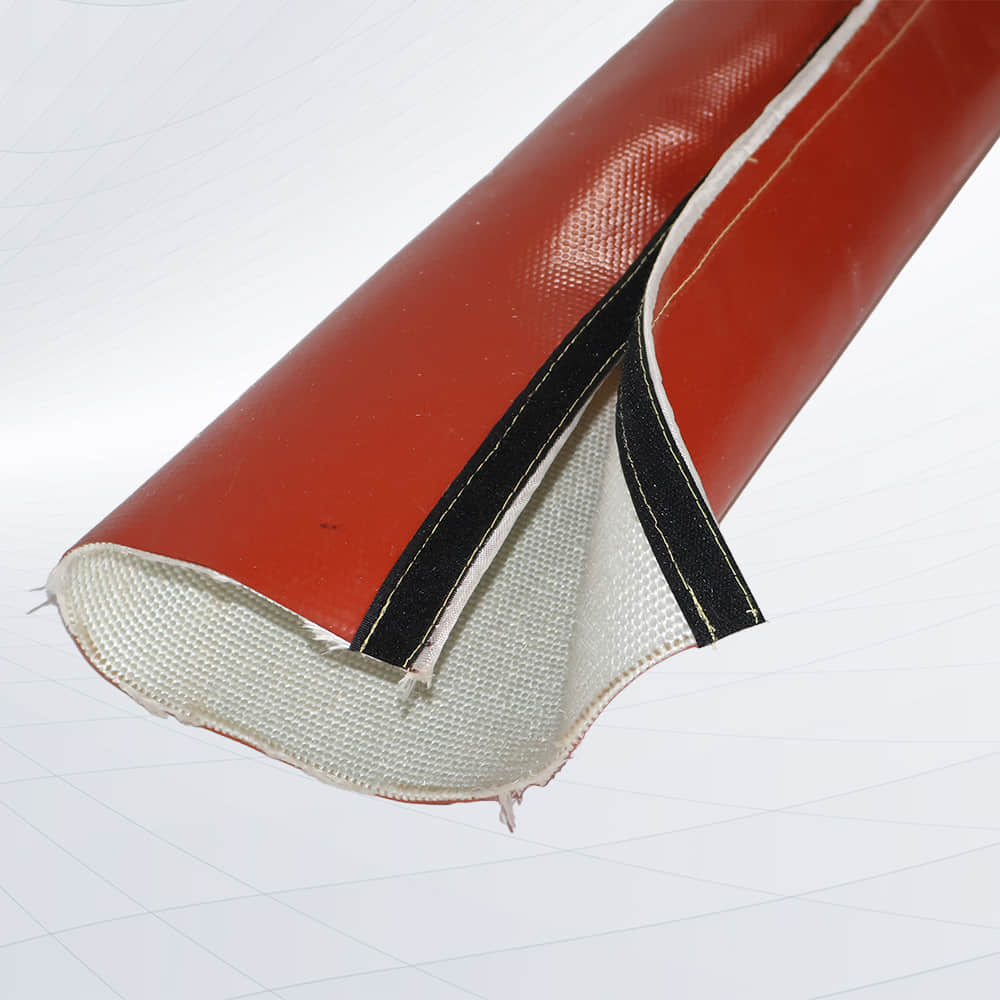

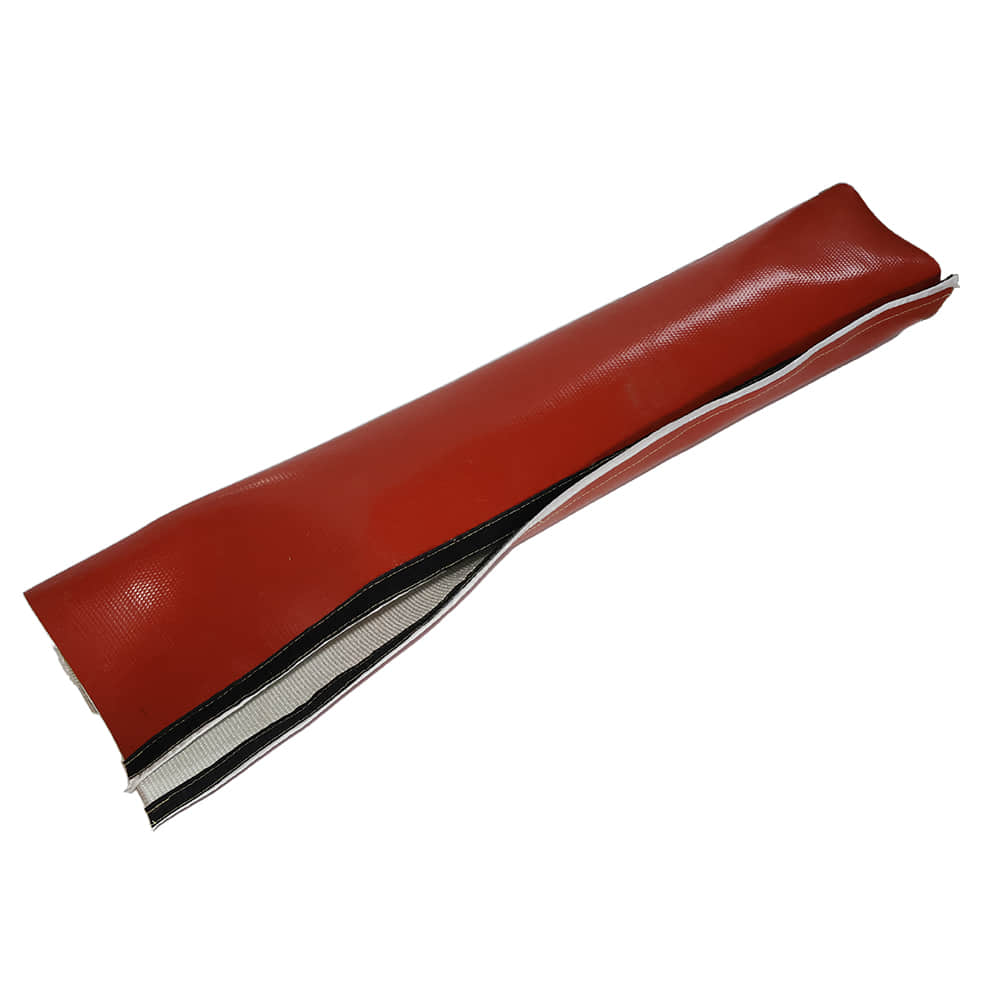

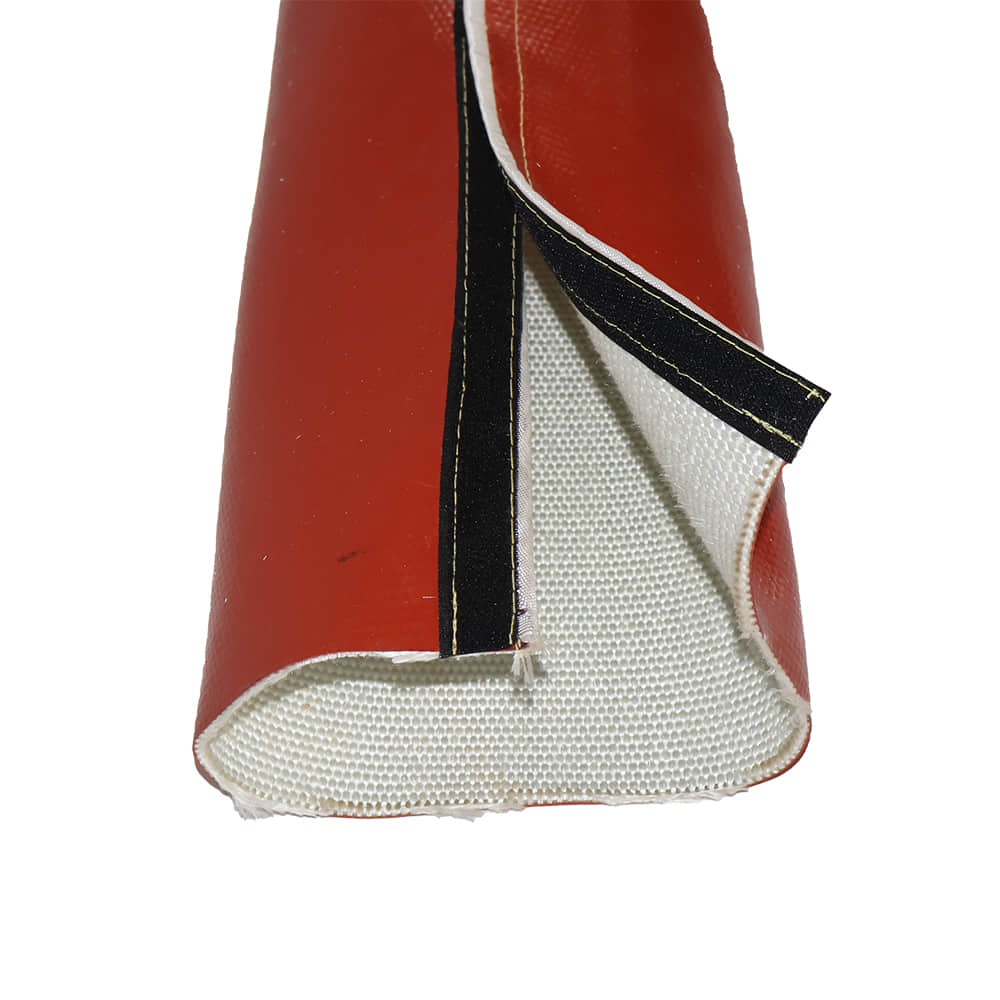

Hook-and-Loop Fireproof Fabric Sleeve
- Product Material：Inner layer of alkali-free fiberglass yarn, outer layer of silicone, stitched with high-temperature resistant flame-retardant
- Product Specifications：Width10mm~1000mm，Thickness1/2/3mm
- Product Color ：Iron red, other colors can be customized according to customer requirements
- Operating Temperature：Can be used continuously at 260°C, with short-term instantaneous temperature resistance up to 1650°C.
- Rated Voltage： 7KV--25KV
- Product Performance： Easy to disassemble and install. Fireproof / flame-retardant / heat-insulating / insulating / aging-resistant / splash-proof against molten steel. Waterproof / Oil-resistant / Acid and alkali resistant thread, edges wrapped with high-temperature resistant fiberglass cloth, fastened with flame-retardant Velcro.
Description
1. Product Introduction
The buckle-type fireproof fabric sleeve is manufactured using expanded fiberglass fabric as the base material and compounded with silicone rubber through a specialized production process.
It provides excellent high-temperature resistance, thermal insulation, weather resistance, and aging resistance.
Equipped with high-temperature-resistant Velcro fasteners, the sleeve can be installed and removed without shutting down equipment or disconnecting cables, significantly reducing maintenance time.
Product Material
Expanded fiberglass fabric, silicone rubber coating, high-temperature-resistant
flame-retardant thread, fiberglass edge wrapping, and flame-retardant Velcro.
Product Specifications
Width: 10–1000 mm
Thickness: 1 / 2 / 3 mm
Thickness: 1 / 2 / 3 mm
Product Color
Iron red is the standard color. Custom colors are also available.
Operating Temperature
260°C continuous operating temperature and up to 1650°C for short-term exposure.
Rated Voltage
7 kV–25 kV
Product Performance
Easy Installation
Fireproof
Flame-Retardant
Heat Insulation
Electrical Insulation
Aging Resistant
Molten Steel Splash Resistant
Waterproof
Oil Resistant
Acid & Alkali Resistant
2. Product Applications
Mainly used for protecting cables, pipelines, metal hoses, and hydraulic hoses in high-temperature environments.
Steel Mills
Metallurgy
Power Plants
Construction Machinery
Aerospace
Shipbuilding
Glass Manufacturing
3. Packaging and Logistics
Each item is packed in an eco-friendly cardboard box, with multiple cartons palletized for safe international transportation.
