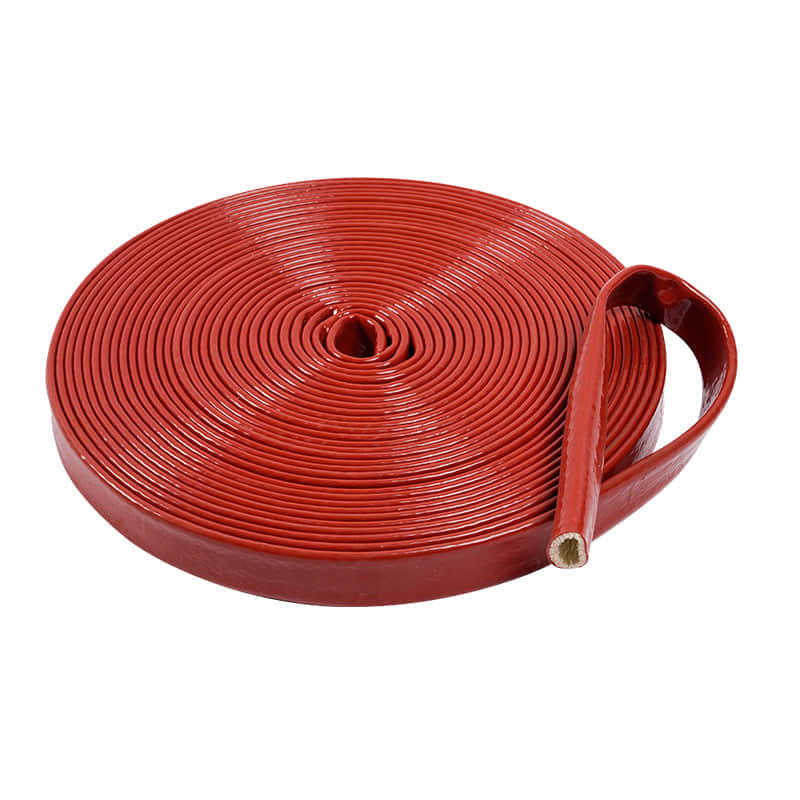

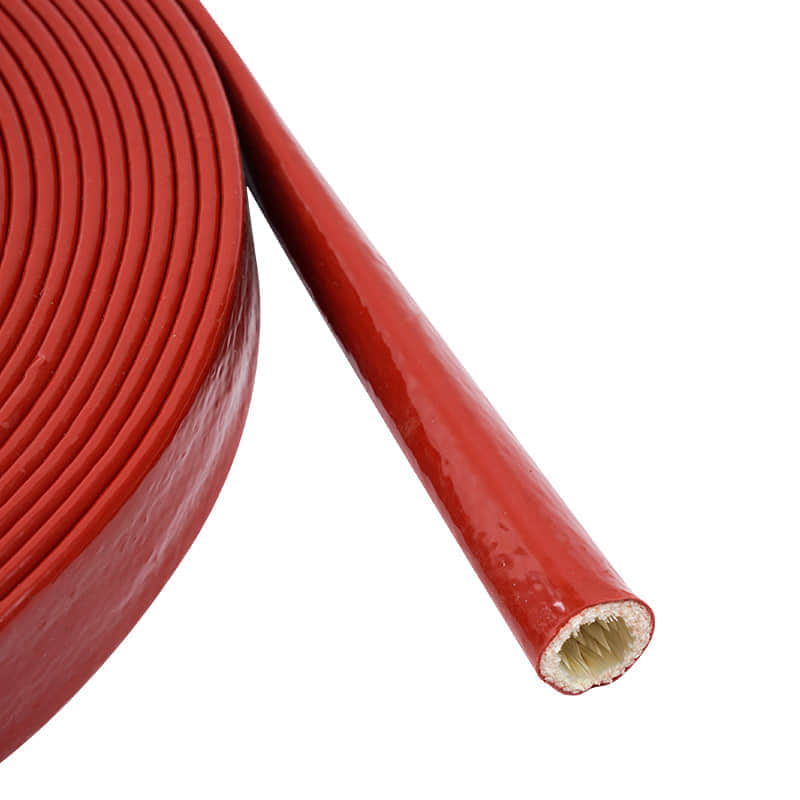

Fireproof Sleeve
- It is fiberglass tube coated with silicone rubber via high-temperature processing.
- It sustains long-term 260°C heat and instant 1650°C peak, rated 7KV–25KV insulation voltage.
- It owns full protection: fireproof, splash-proof, waterproof, oil and acid-alkali resistant.
- Diameters range Φ6–Φ150mm; colors and roll lengths are customizable.
- It shields cables and hoses for metallurgy, power, aerospace and other high-temperature scenes.
Description
1
Product Introduction
Fireproof sleeves, also known as high-temperature-resistant sleeves, are made by weaving special alkali-free glass fiber yarn into a tubular structure. The tube is then coated with silicone rubber and treated at high temperatures.
The finished sleeve provides excellent high-temperature resistance, thermal insulation, flame retardancy, electrical insulation, aging resistance, and long-term durability. It is suitable for protecting cables, hoses, pipelines, and other equipment operating in harsh industrial environments.

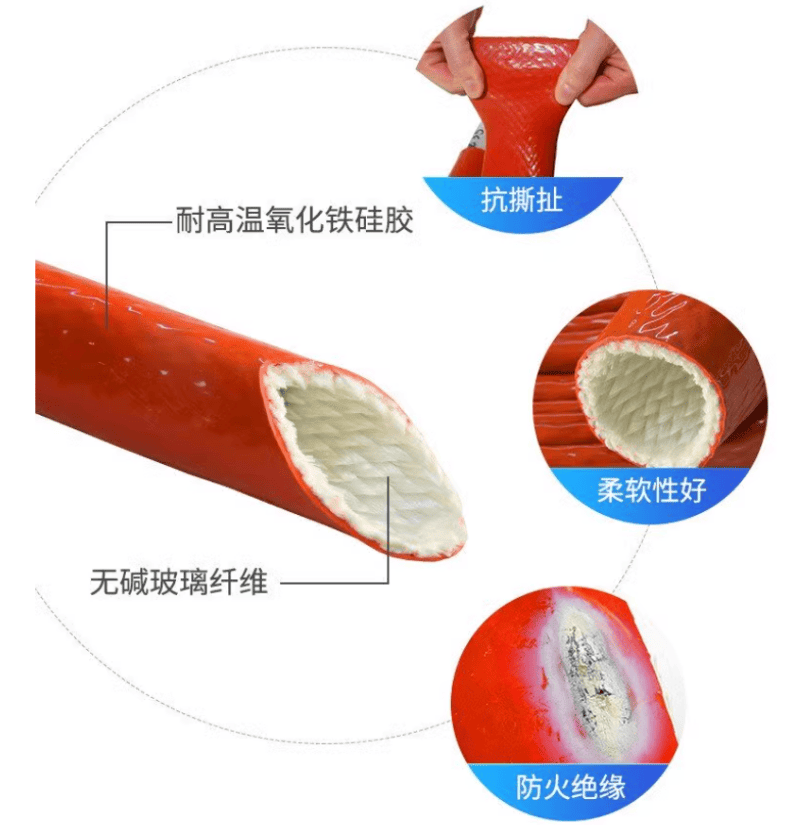

Product Material
Inner layer: Alkali-free glass fiber yarn
Outer layer: Silicone rubber coating
Product Specifications
Inner diameter: Φ6 mm–Φ150 mm

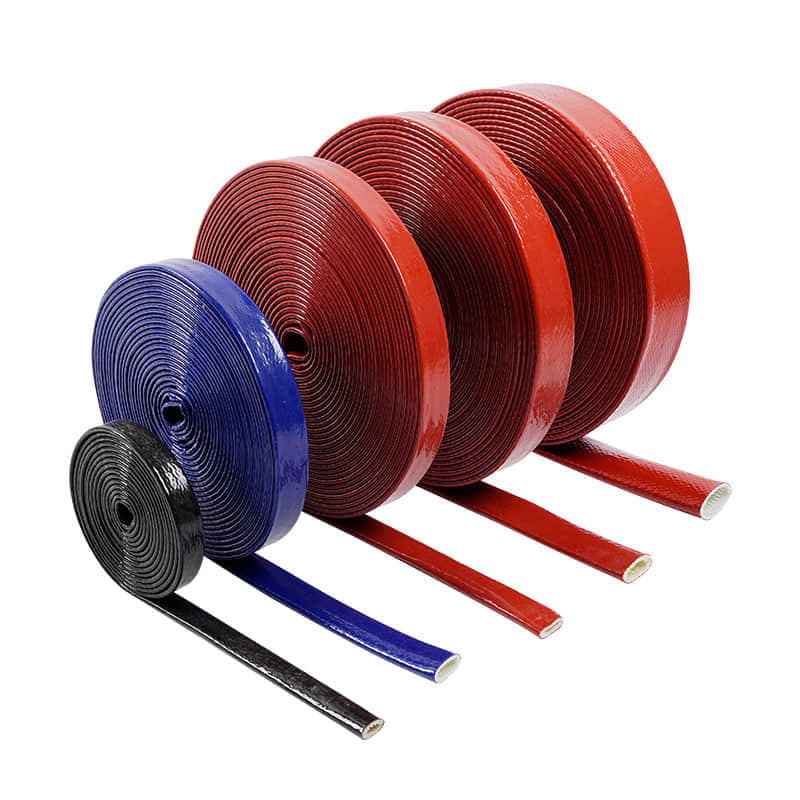

Product Color
Iron red is the standard color. Other colors can be customized according to customer requirements.
Operating Temperature
Can be used continuously at 260°C, with short-term instantaneous temperature resistance up to 1650°C.
Rated Voltage
7 kV–25 kV
Product Performance
Fireproof
Flame-Retardant
Heat-Insulating
Electrically Insulating
Aging-Resistant
Resistant to Molten Steel Splashes
Waterproof
Oil-Resistant
Acid- and Alkali-Resistant
Size Specifications
| Inner Diameter (mm) | Inner Diameter Tolerance (mm) | Wall Thickness and Tolerance (mm) | Meters per Roll |
|---|---|---|---|
| Φ6–Φ10 | ±0.3 | 2.5 ± 0.2 | 100 m |
| Φ12–Φ18 | ±0.4 | 3.0 ± 0.3 | 100 m |
| Φ20–Φ30 | ±0.8 | 3.5 ± 0.4 | 50 m |
| Φ35–Φ55 | ±1.0 | 3.8 ± 0.5 | 50 m |
| Φ60–Φ100 | ±1.0 | 4.0 ± 0.5 | 20 m |
| Φ105–Φ150 | ±1.0 | 5.0 ± 0.5 | 15 m |
Note: Product color and roll length can be customized according to customer requirements.
2

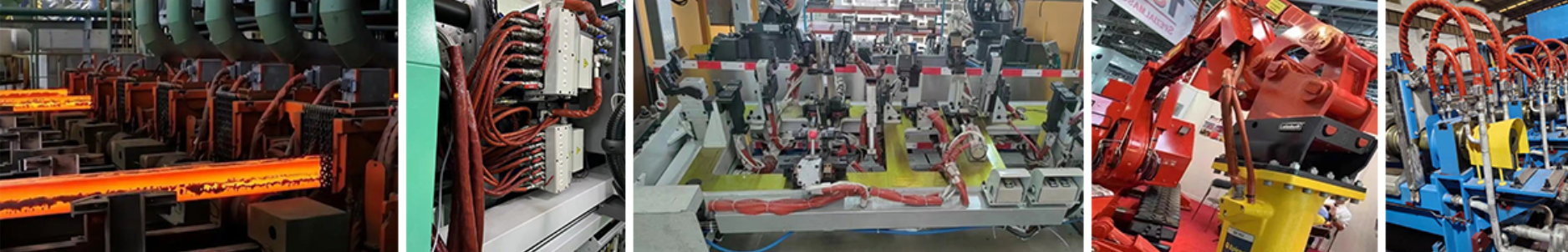

Product Applications
Fireproof sleeves are mainly used for the protection of cables, pipelines, metal pipes, and hydraulic hoses in high-temperature working environments.
Their excellent heat resistance, thermal insulation, flame-retardant performance, and resistance to molten metal splashes help protect equipment, improve operational safety, and extend the service life of cables and hoses.
Typical application industries include:
Steel Mills
Metallurgy
Power Plants
Construction Machinery
Aerospace
Shipbuilding
Glass Factories
3
Packaging and Logistics
Secure Packaging
Each fireproof sleeve is packed in an eco-friendly cardboard box to provide reliable protection during storage and transportation.
Multiple cartons are securely palletized for stable loading and safe international transport. Standard packaging is suitable for sea, air, and land transportation, while customized packaging solutions are also available according to customer requirements.
