Fireproof Fabric
- Product Material：Inner layer of alkali-free glass fiber yarn, outer layer of silicone rubber
- Product Specifications：
- Width1000mm，Thickness1/2/3mm
- Product Color：Iron red, other colors can be customized according to customer requirements
- Operating Temperature：Can be used continuously at 260°C, with short-term instantaneous temperature resistance up to 1650°C.
- Rated Voltage：7KV--25KV
- Product Performance： Fireproof / Flame-retardant / Heat-insulating / Insulating / Aging-resistant / Steel splash-proof / Waterproof / Oil-resistant / Acid and alkali resistant
Description
1
Product Introduction

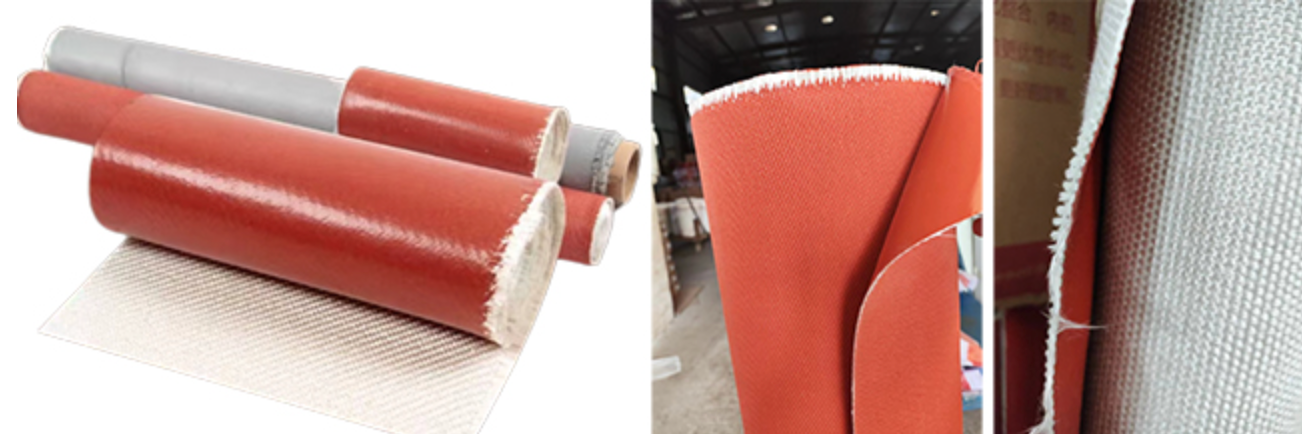

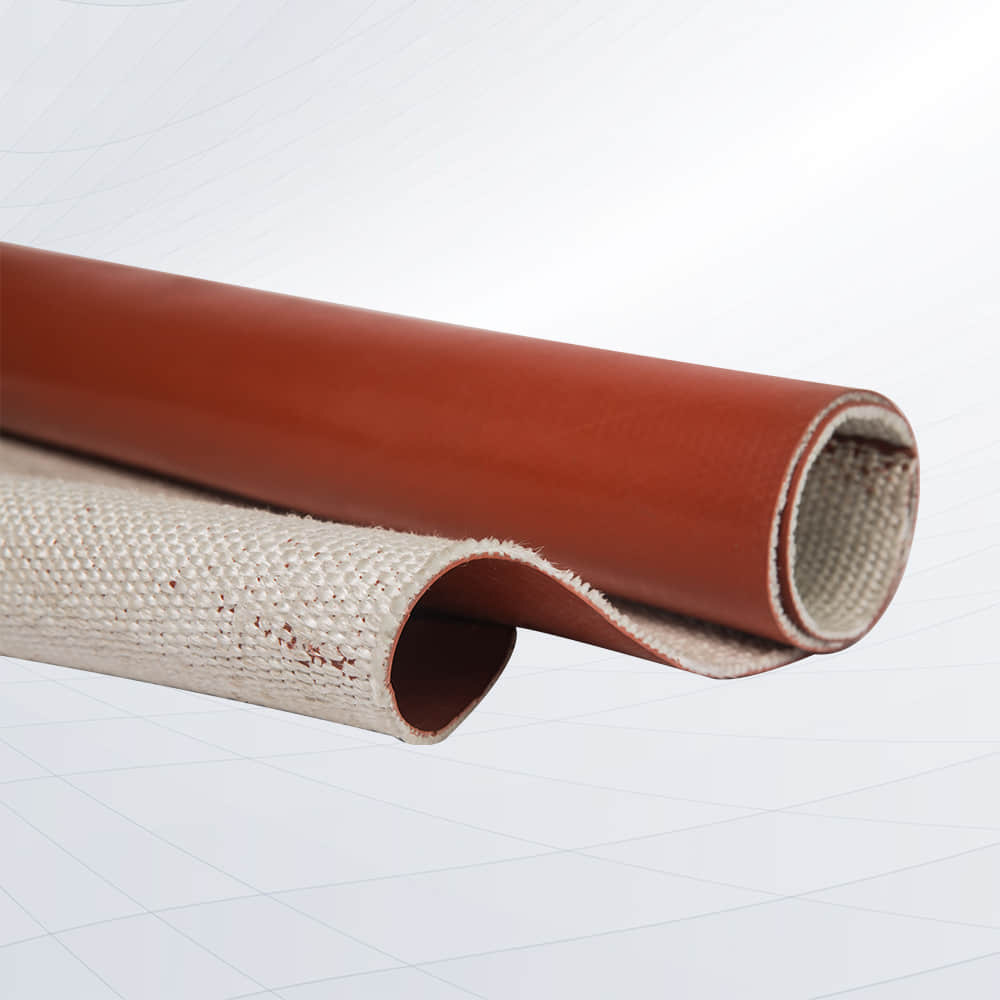

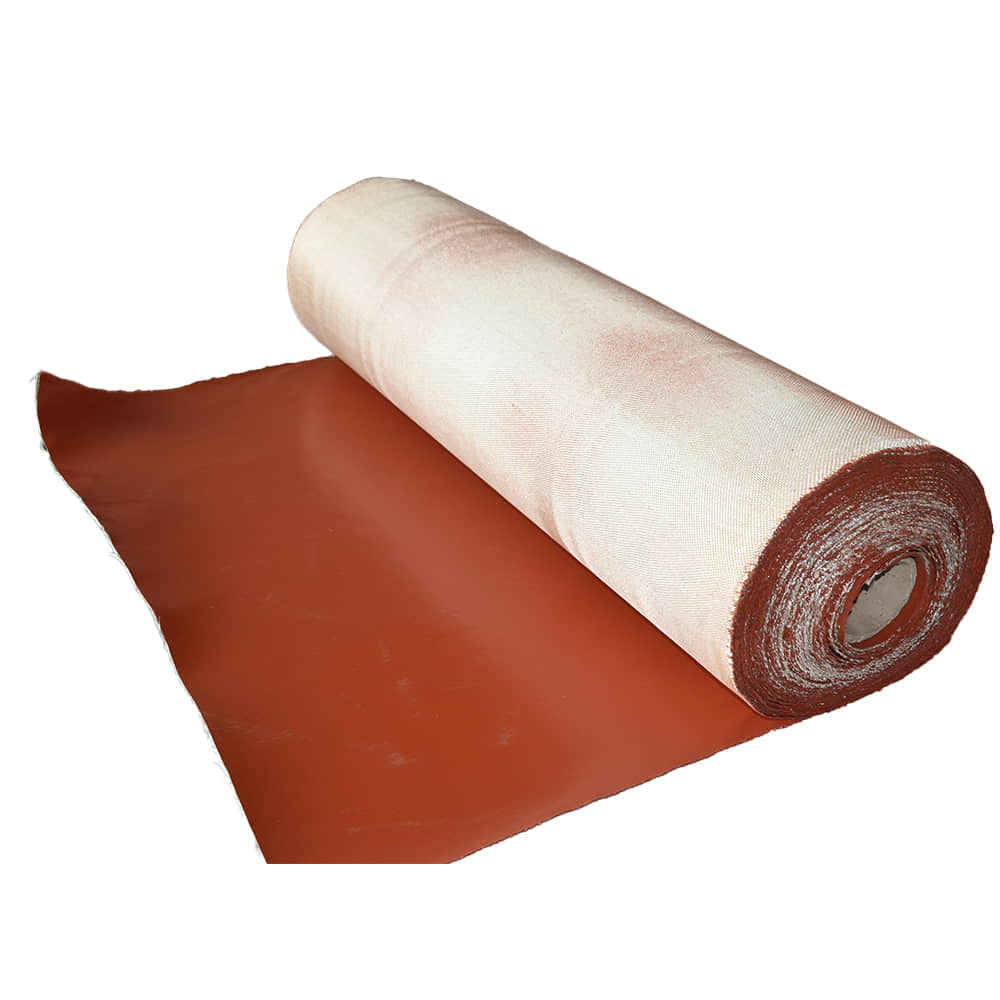

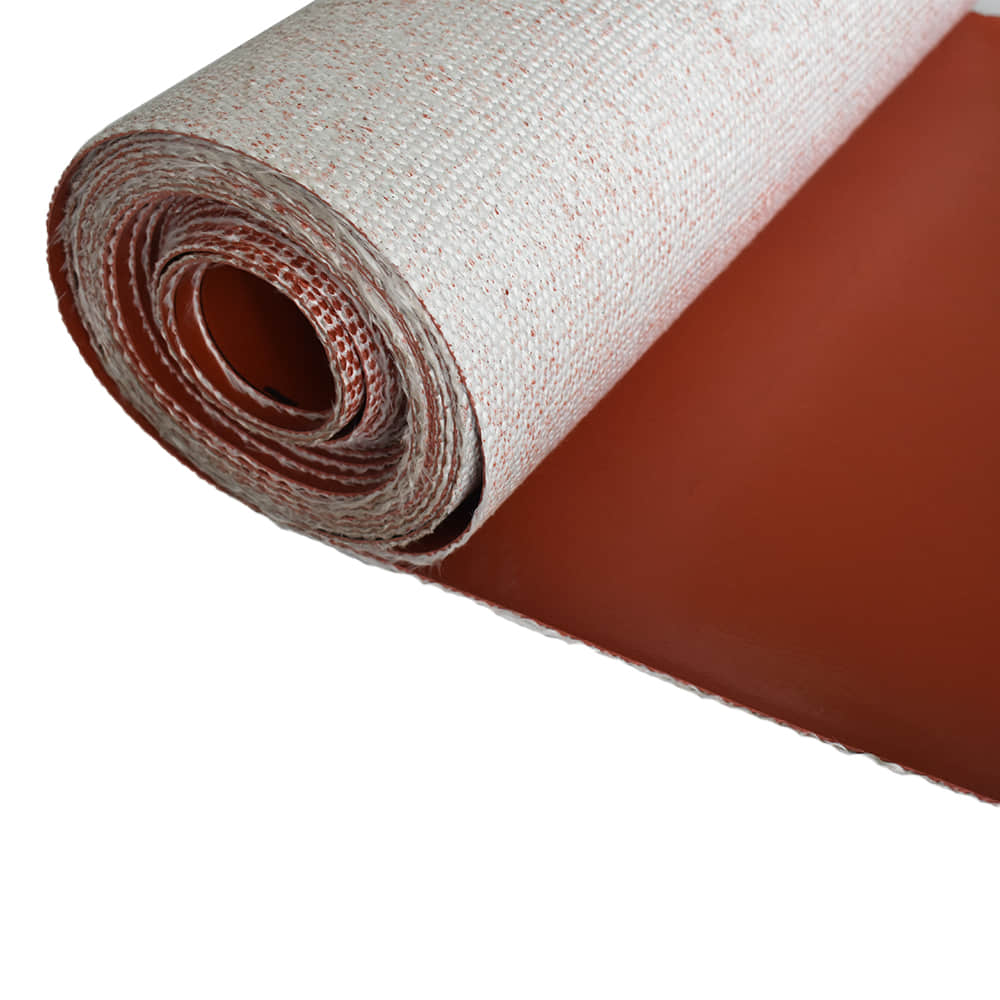

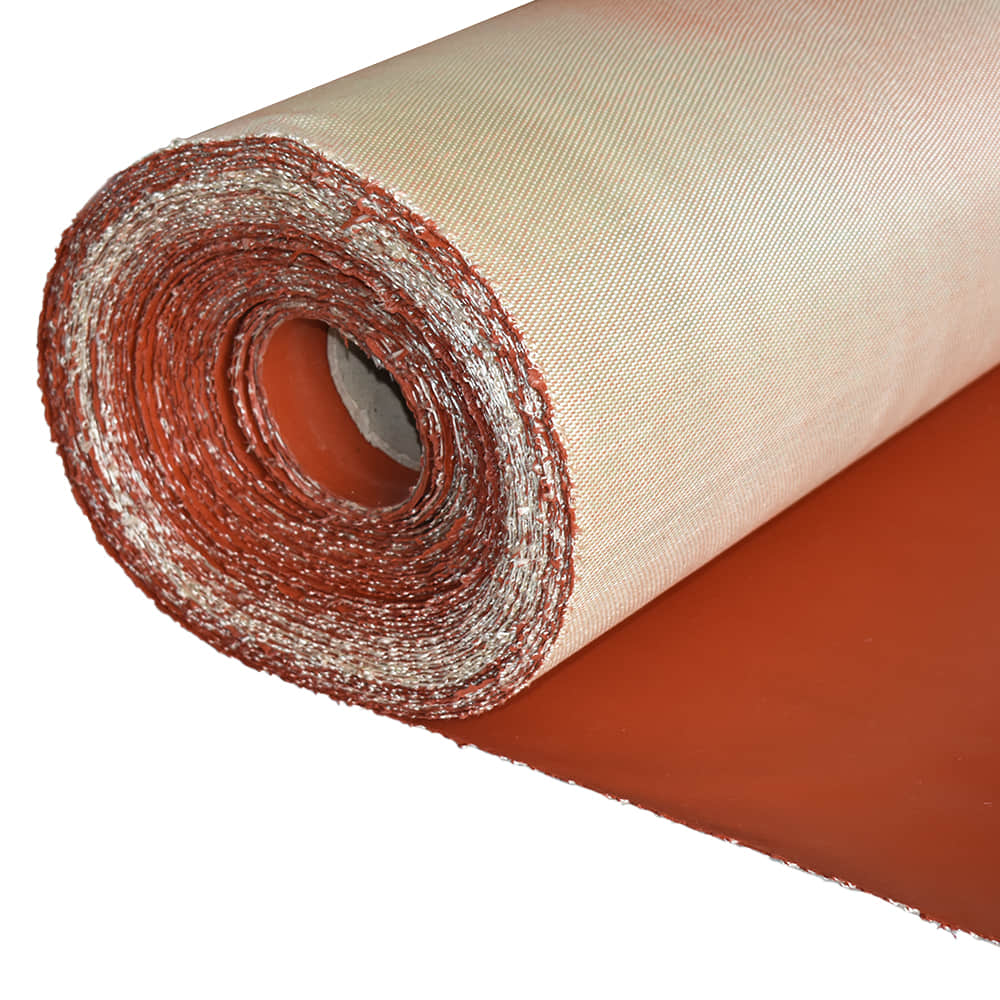

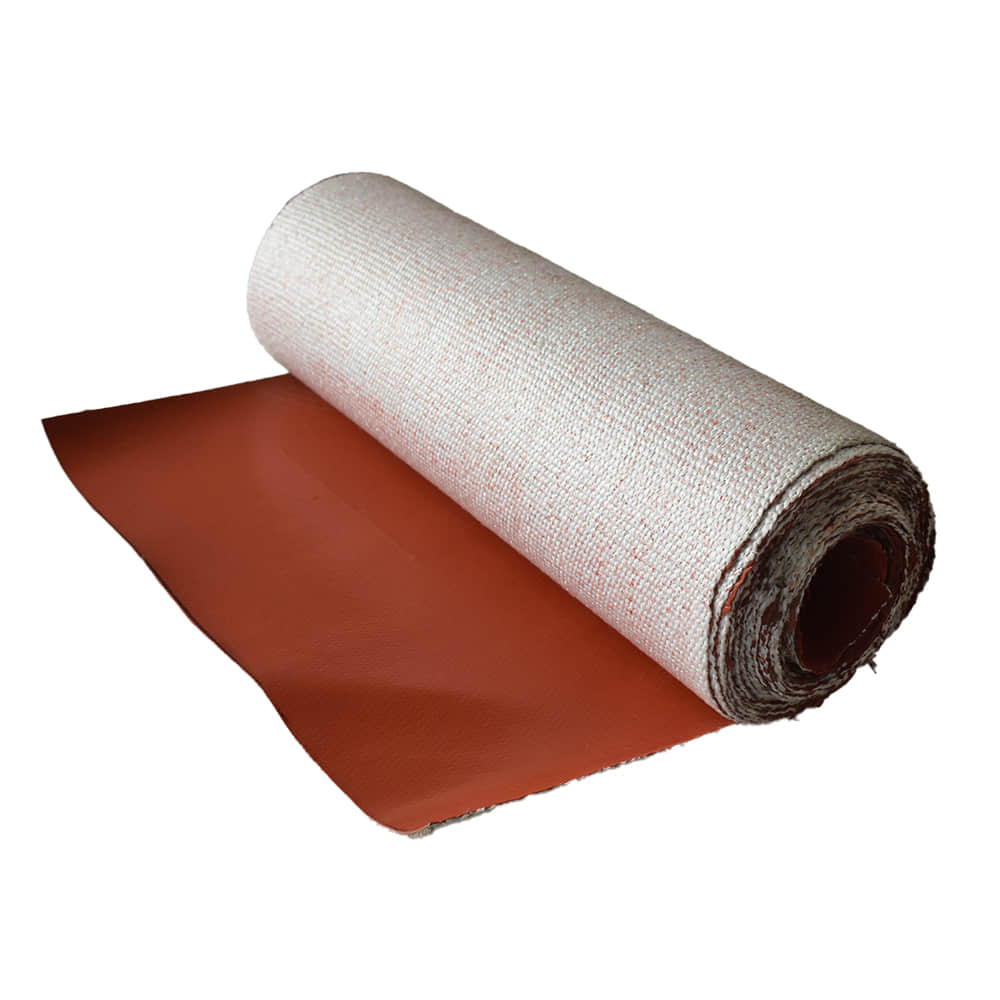

Fireproof fabric is made of expanded fiberglass cloth as the base material and compounded with silicone rubber through a specialized production process.
It provides excellent high-temperature resistance, thermal insulation, weather resistance, and aging resistance. The material can maintain reliable performance in demanding industrial environments and provide effective protection against heat, flames, and molten metal splashes.
Fireproof fabric is widely used in aerospace, chemical processing, large-scale power generation equipment, heavy machinery, metallurgy, non-metallic expansion joints, compensators, and other industrial fields.
Product Material
Base material: Expanded fiberglass cloth
Surface coating: Silicone rubber
Product Specifications
Width: 1000 mm
Thickness: 1 mm / 2 mm / 3 mm
Thickness: 1 mm / 2 mm / 3 mm
Product Color
Iron red is the standard color. Other colors can be customized according to customer requirements.
Operating Temperature
Can be used continuously at 260°C, with short-term instantaneous temperature resistance up to 1650°C.
Rated Voltage
7 kV–25 kV
Product Performance
Fireproof
Flame-Retardant
Heat-Insulating
Electrically Insulating
Aging-Resistant
Resistant to Molten Steel Splashes
Waterproof
Oil-Resistant
Acid- and Alkali-Resistant
2
Product Applications
Fireproof fabric is mainly used for thermal insulation and high-temperature protection of cables, pipelines, metal hoses, and hydraulic hoses operating in demanding industrial environments.
Its excellent heat resistance, flame-retardant properties, and resistance to molten metal splashes make it an ideal protective material for various heavy-duty industrial applications.
Typical application industries include:
Steel Mills
Metallurgy
Power Plants
Construction Machinery
Aerospace
Shipbuilding
Glass Manufacturing
3
Packaging and Logistics
Secure Packaging
Each roll of fireproof fabric is carefully packed in an eco-friendly cardboard box to ensure reliable protection during storage and transportation.
Multiple cartons are securely palletized for stable loading and safe international shipment. Standard packaging is suitable for sea, air, and land transportation, while customized packaging solutions are also available according to customer requirements.
