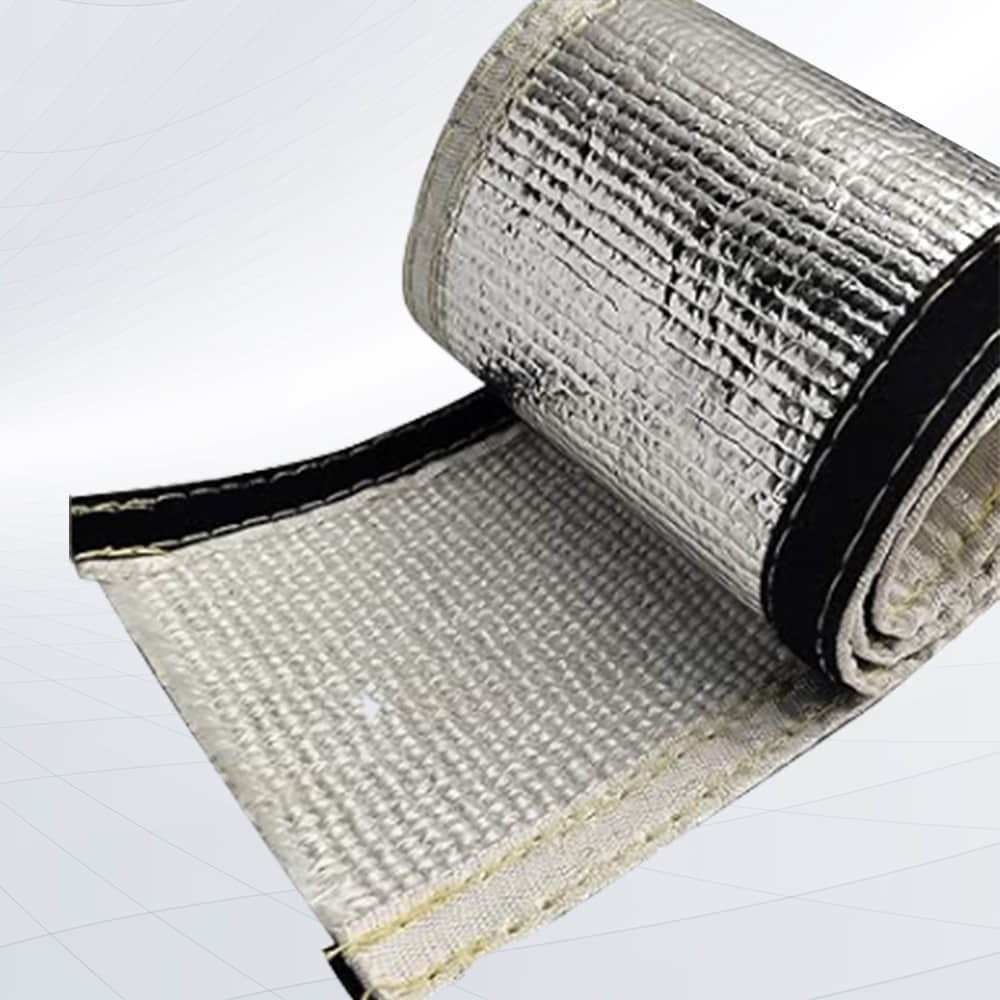

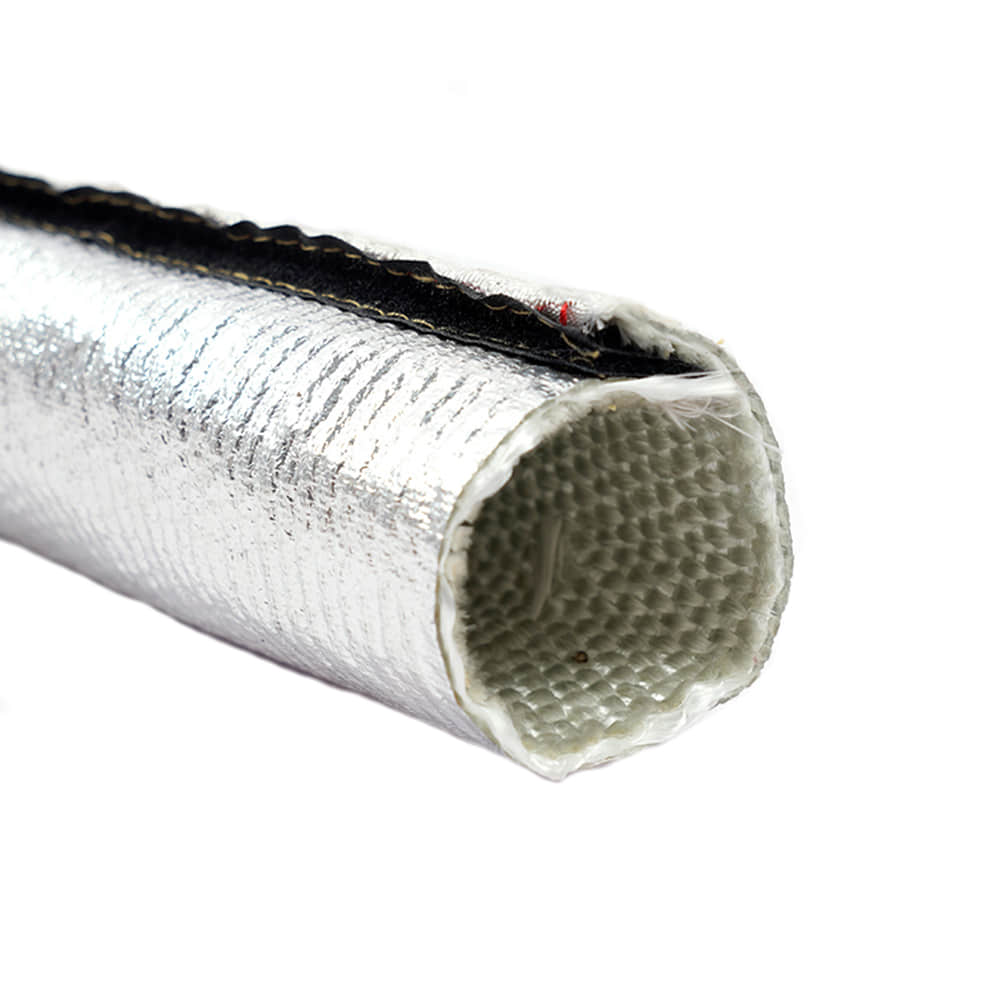

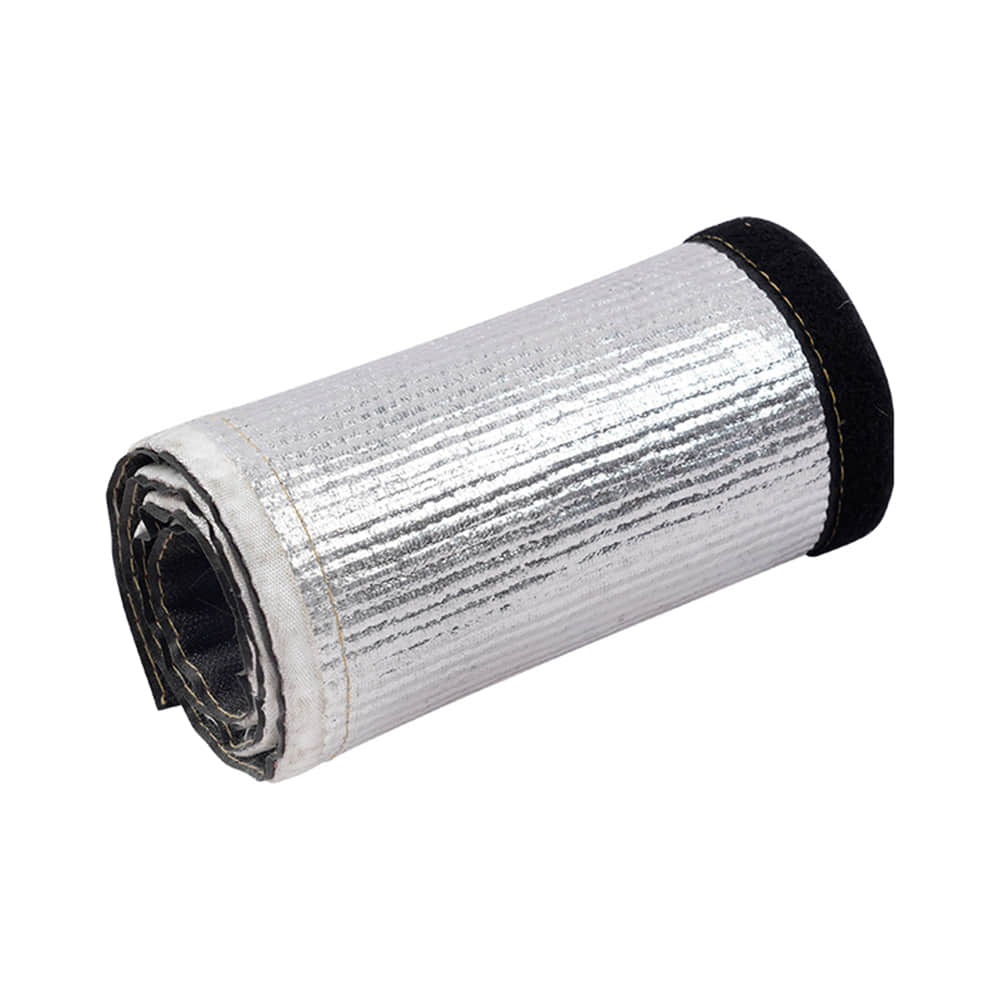

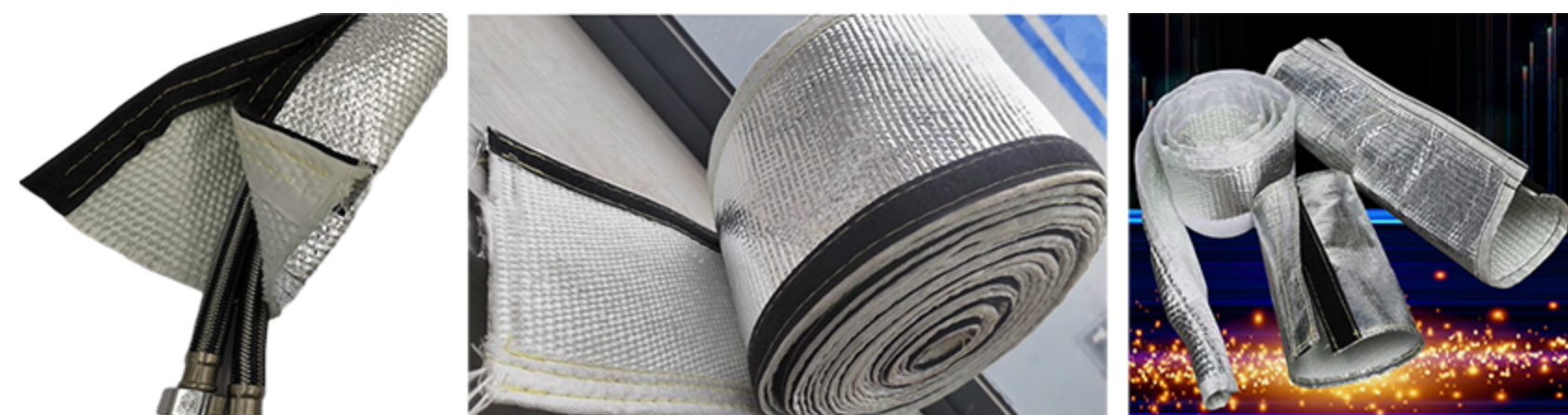

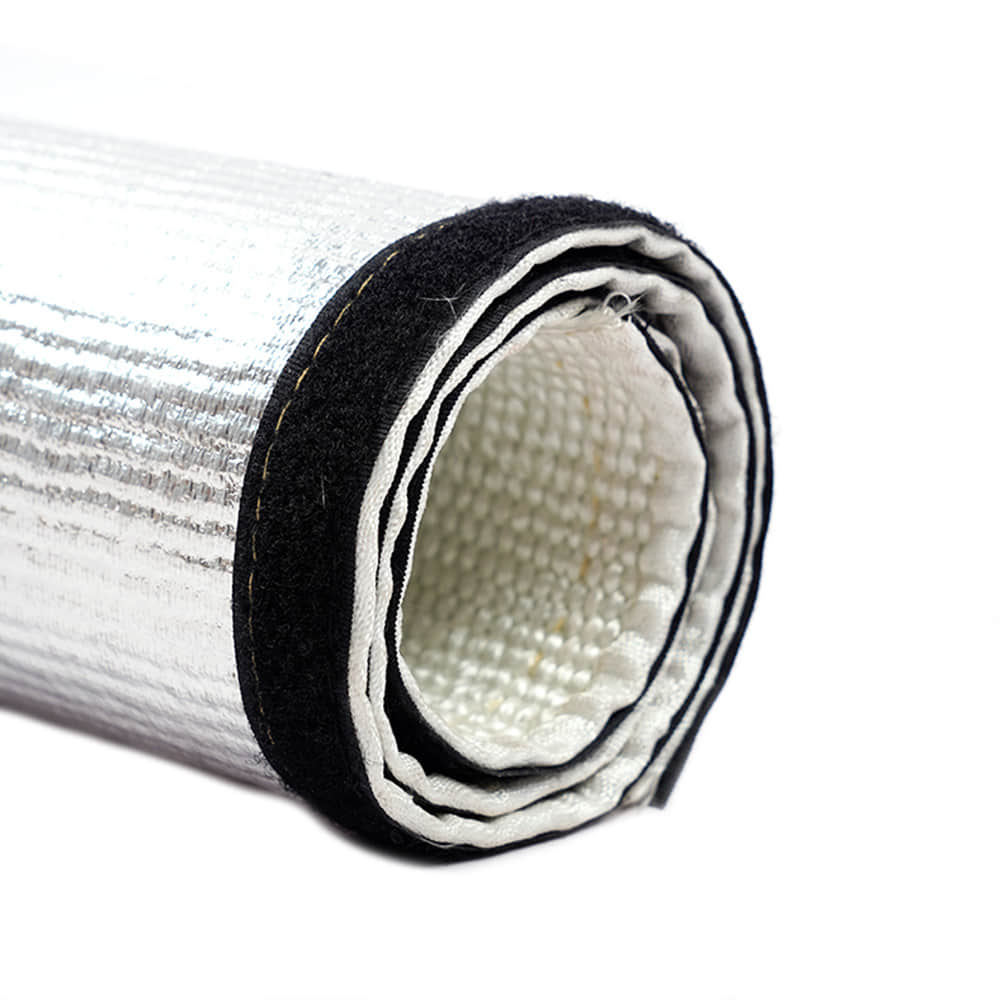

Heat-Resistant Aluminum Foil Sleeve
- Product Material：Inner layer of alkali-free fiberglass yarn, outer layer of silicone, stitched with high-temperature resistant flame-retardant
- Product Specifications：Width10mm~1000mm，Thickness1/2/3mm
- Product Color：Iron red, other colors can be customized according to customer requirements
- Operating Temperature：Can be used continuously at 260°C, with short-term instantaneous temperature resistance up to 1650°C.
- Rated Voltage：7KV--25KV
- Product Performance： Easy to disassemble and install. Fireproof / flame-retardant / heat-insulating / insulating / aging-resistant / splash-proof against molten steel. Waterproof / Oil-resistant / Acid and alkali resistant thread, edges wrapped with high-temperature resistant fiberglass cloth, fastened with flame-retardant Velcro.
Description
1
Product Introduction
The buckle-type fireproof fabric sleeve is made of expanded fiberglass fabric as the base material and compounded with silicone rubber through a special process.
It offers excellent high-temperature resistance, thermal insulation, weather resistance, aging resistance, and long-term durability.
The sleeve is equipped with high-temperature-resistant Velcro fasteners, making installation and removal more convenient. There is no need to shut down equipment or disconnect cables during installation. Simply wrap the sleeve around the required area and fasten it in the middle to achieve sealing, insulation, and protection.
This installation method does not affect equipment operation and helps reduce installation time.
Product Material
Inner layer: Alkali-free fiberglass yarn
Outer layer: Silicone coating
Stitching: High-temperature-resistant flame-retardant thread
Edge wrapping: High-temperature-resistant fiberglass cloth
Fastening system: Flame-retardant Velcro
Product Specifications
Width: 10 mm–1000 mm
Thickness: 1 mm / 2 mm / 3 mm
Thickness: 1 mm / 2 mm / 3 mm
Product Color
Iron red is the standard color. Other colors can be customized according to customer requirements.
Operating Temperature
Can be used continuously at 260°C, with short-term instantaneous temperature resistance up to 1650°C.
Rated Voltage
7 kV–25 kV
Product Performance
Easy to Install and Remove
Fireproof
Flame-Retardant
Heat-Insulating
Electrically Insulating
Aging-Resistant
Resistant to Molten Steel Splashes
Waterproof
Oil-Resistant
Acid- and Alkali-Resistant
2
Product Applications

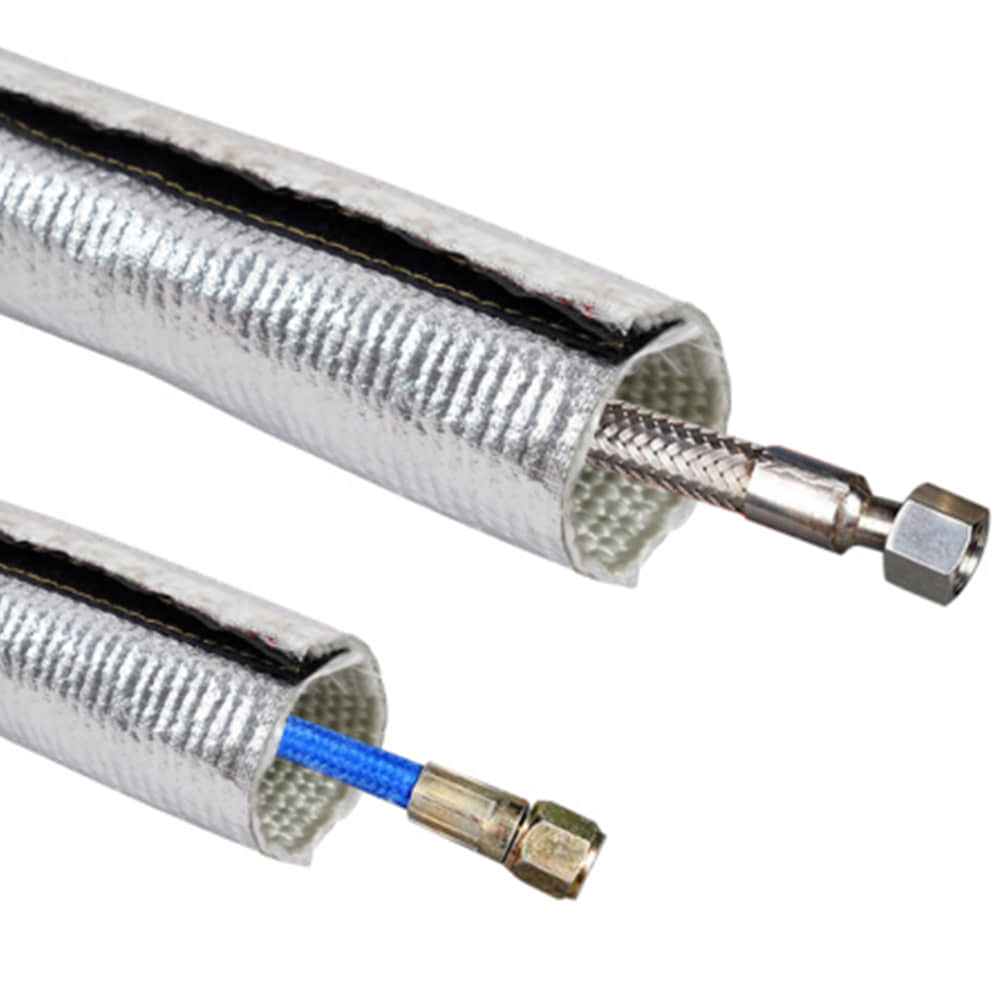

The buckle-type fireproof fabric sleeve is mainly used to protect cables, pipelines, metal hoses, and hydraulic hoses in high-temperature working environments.
Typical application industries include:
Steel Mills
Metallurgy
Power Plants
Construction Machinery
Aerospace
Shipbuilding
Glass Factories
3
Packaging and Logistics
Secure Packaging
Each item is packed in an eco-friendly cardboard box, with multiple items palletized for stable and reliable transport.
