Clamping Fireproof Sleeve
- Product Specifications：Ф10mm--Ф140mm
- Product Color：ron red, other colors can be customized according to customer requirements
- Operating Temperature：Can be used continuously at 260°C, with short-term instantaneous temperature resistance up to 1650°C
- Rated Voltage：7KV--25KV
- Product Performance Easy to disassemble and install. Fireproof / flame-retardant / heat-insulating / insulating / aging- resistant / splash-proof against molten steel. Waterproof / Oil-resistant / Acid-alkali resistant
Description
1
Product Introduction

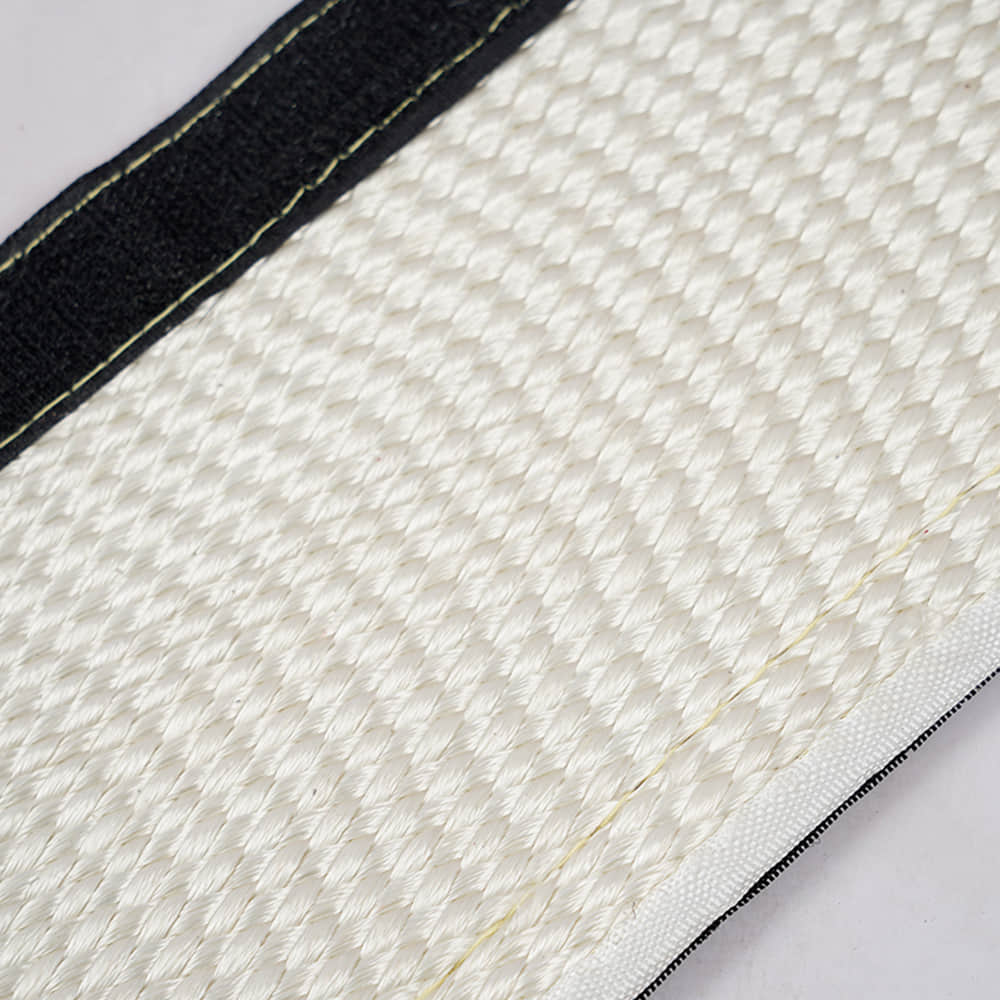

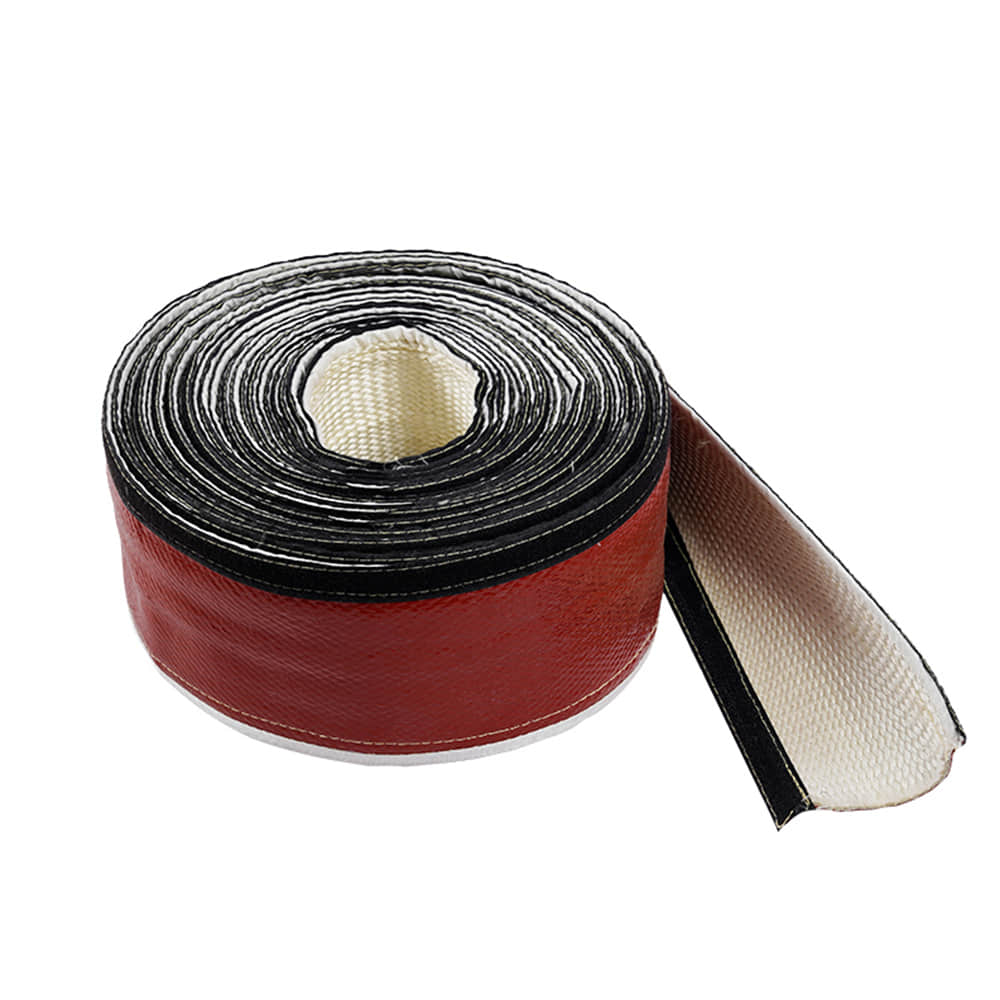

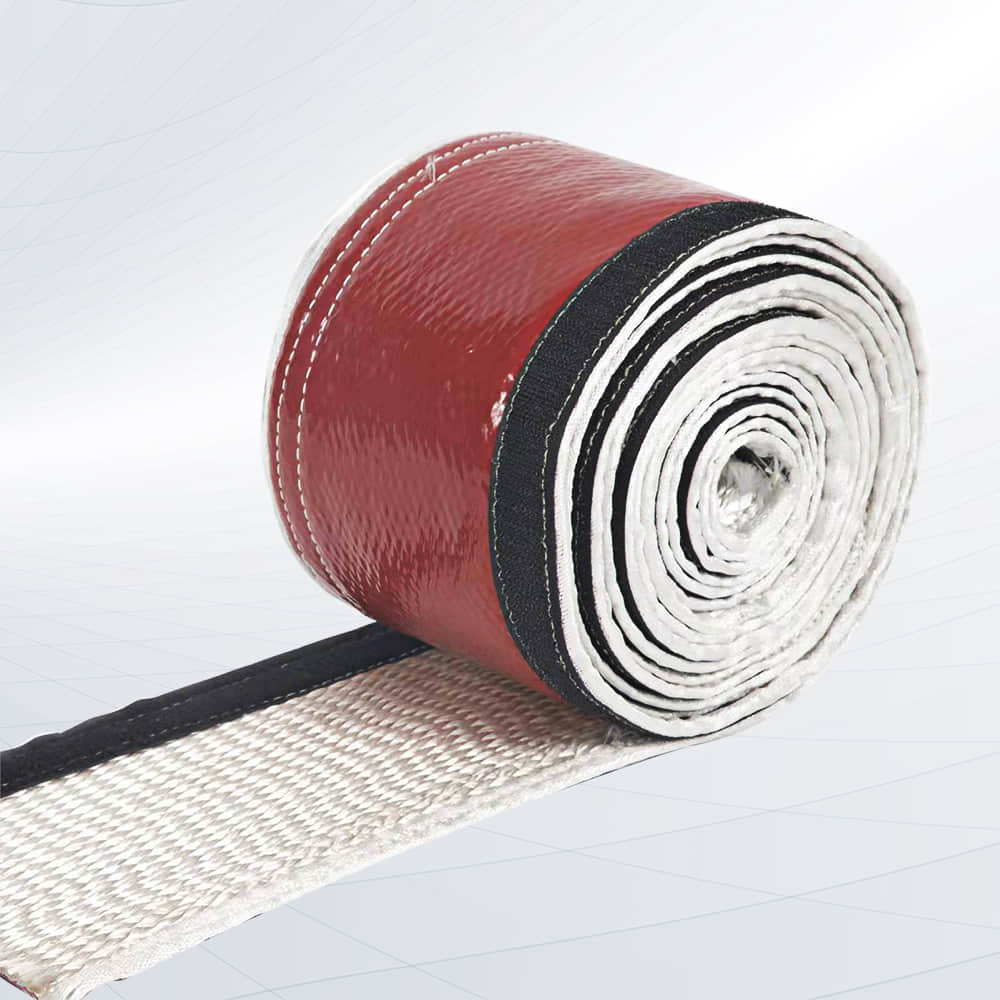

The buckle-type fireproof sleeve is made by weaving special alkali-free glass fiber yarn into a tubular structure, then coating it with silicone rubber and treating it at high temperatures.
It is equipped with high-temperature-resistant Velcro fasteners, making installation and removal more convenient.
Installation does not require shutting down the equipment or disconnecting cables. Simply wrap the sleeve around the required cable, hose, or pipeline and fasten it in the middle to achieve reliable thermal insulation and sealing.
This installation method does not affect normal equipment operation and helps reduce installation time.

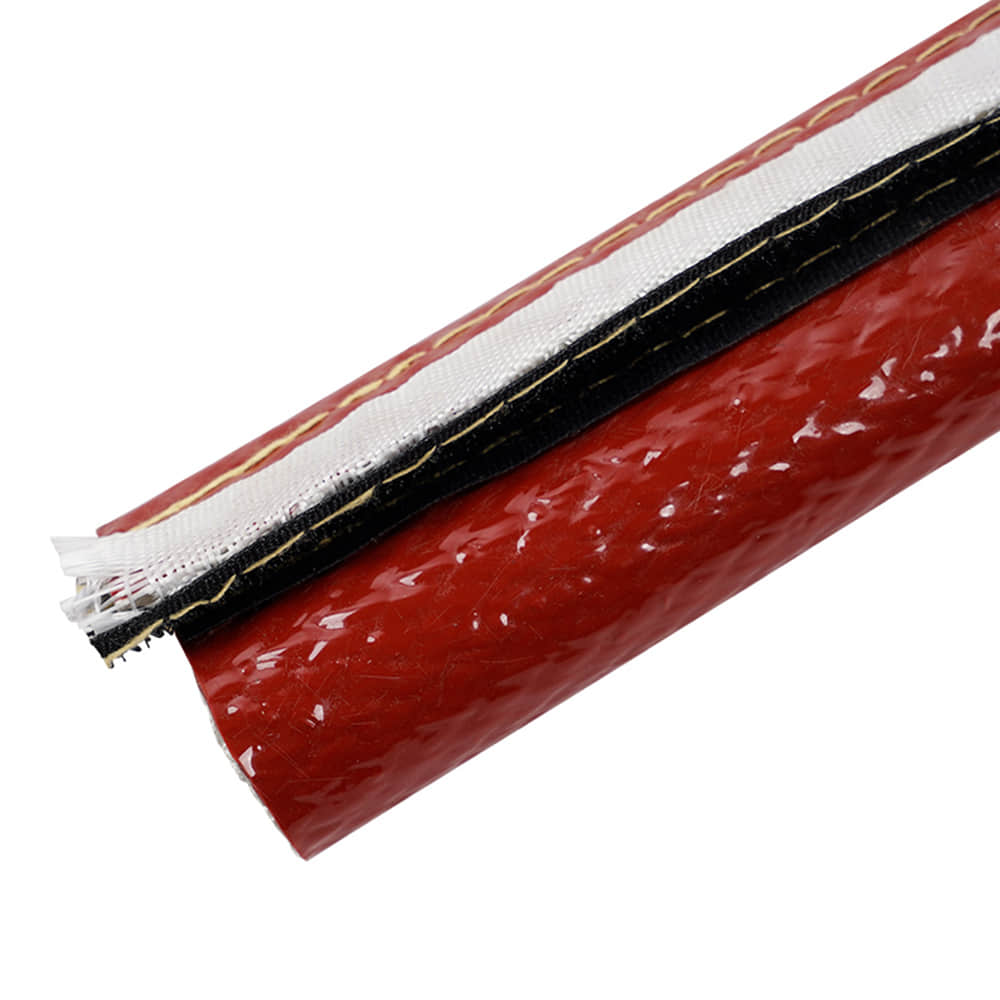

Product Material
Inner layer: Alkali-free fiberglass yarn
Outer layer: Silicone rubber coating
Stitching: High-temperature-resistant flame-retardant thread
Edge wrapping: High-temperature-resistant fiberglass cloth
Fastening system: Flame-retardant Velcro
Product Specifications
Inner diameter: Φ10 mm–Φ140 mm
Product Color
Iron red is the standard color. Other colors can be customized according to customer requirements.
Operating Temperature
Can be used continuously at 260°C, with short-term instantaneous temperature resistance up to 1650°C.
Rated Voltage
7 kV–25 kV
Product Performance
Easy to Install and Remove
Fireproof
Flame-Retardant
Heat-Insulating
Electrically Insulating
Aging-Resistant
Resistant to Molten Steel Splashes
Waterproof
Oil-Resistant
Acid- and Alkali-Resistant
Size Specifications
| Inner Diameter (mm) | Inner Diameter Tolerance (mm) | Wall Thickness and Tolerance (mm) | Meters per Roll |
|---|---|---|---|
| Φ10 | ±0.3 | 2.5 ± 0.2 | 50 m |
| Φ12–Φ18 | ±0.4 | 3.0 ± 0.3 | 50 m |
| Φ20–Φ30 | ±0.8 | 3.5 ± 0.4 | 25 m |
| Φ35–Φ55 | ±1.0 | 3.8 ± 0.5 | 25 m |
| Φ60–Φ100 | ±1.0 | 4.0 ± 0.5 | 20 m |
| Φ105–Φ140 | ±1.0 | 5.0 ± 0.5 | 15 m |
Note: Product color and roll length can be customized according to customer requirements.
2
Product Applications

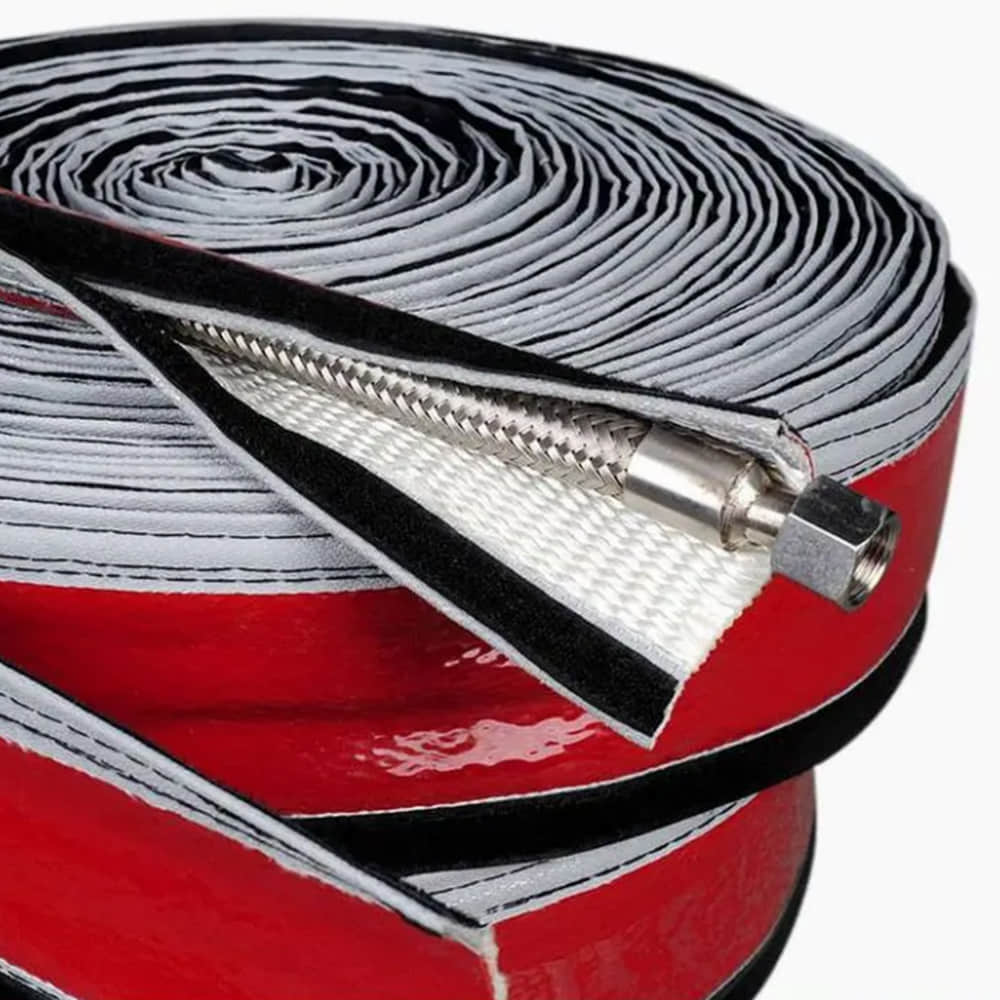

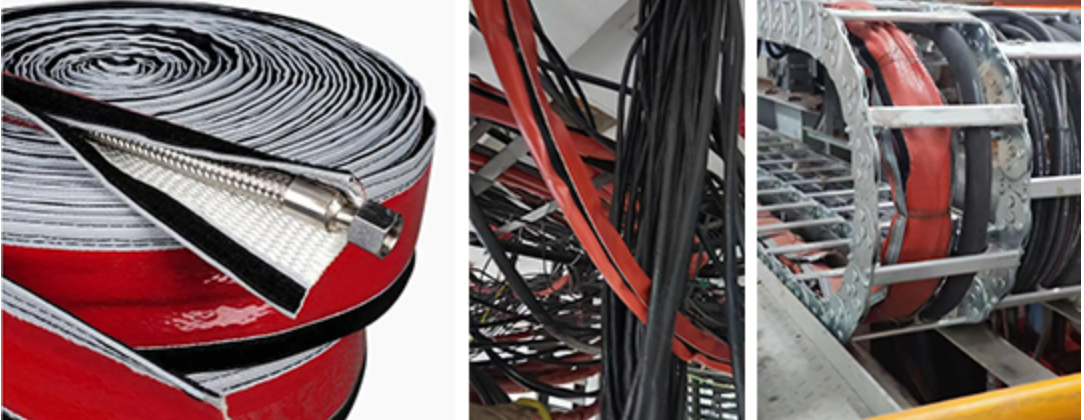

The buckle-type fireproof sleeve is mainly used for the protection of cables, pipelines, metal hoses, and hydraulic hoses in high-temperature working environments.
Its excellent thermal insulation, flame-retardant performance, electrical insulation, and resistance to molten steel splashes help protect equipment, improve operational safety, and extend the service life of cables and hoses.
Typical application industries include:
Steel Mills
Metallurgy
Power Plants
Construction Machinery
Aerospace
Shipbuilding
Glass Factories
3
Packaging and Logistics
Secure Packaging
Each buckle-type fireproof sleeve is packed in an eco-friendly cardboard box to provide reliable protection during storage and transportation.
Multiple cartons are securely palletized for stable loading and safe international transport. Standard packaging is suitable for sea, air, and land transportation, while customized packaging solutions are also available according to customer requirements.
